55 inch all-round outdoor waterproof vertical advertising machine with protection
In modern society, information transmission and advertising have become increasingly rapid and diverse. This 55-inch outdoor waterproof vertical advertising display not only attracts attention with its striking bright yellow appearance, but also, thanks to its powerful hardware advantages and wide range of application scenarios, has become the preferred tool for various advertising venues.
55-inch Outdoor Waterproof Vertical Advertising Display: Eye-Catching Bright Yellow, Superior Hardware
1. Durable Shell Design: All-Around Protection

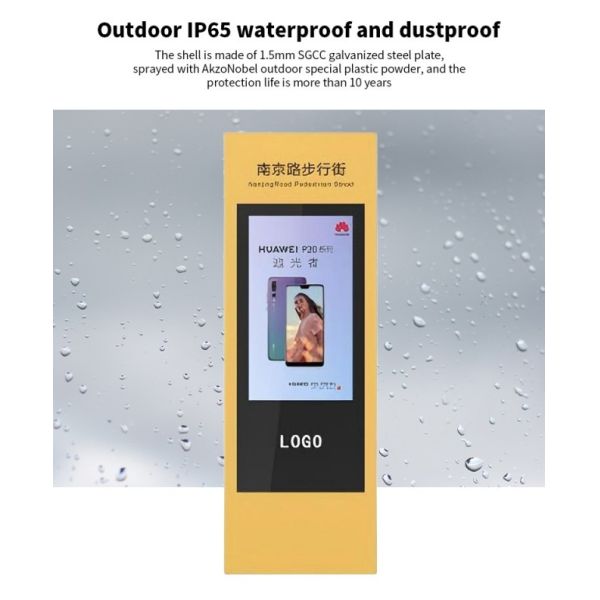

The advertising display shell is made of galvanized steel sheet, coated with outdoor-specific powder coating, effectively resisting climate change and external environmental corrosion, ensuring the equipment's long lifespan and stable operation.
2. IP65 Rating Protection: Rain and Snow Unhindered
The screen's IP65 protection rating gives the advertising display excellent waterproof performance, fearless of wind and rain. Whether in the hot summer or the cold winter, it can operate stably, and the 2500nit brightness of the screen ensures clear visibility of the content.

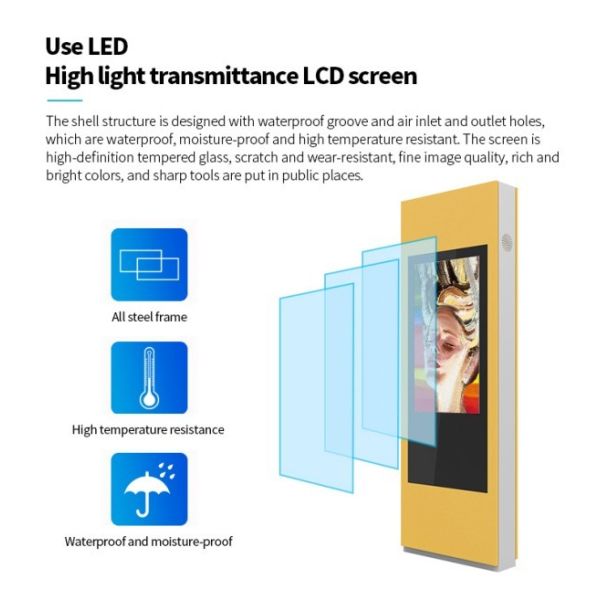

3. Tempered Explosion-Proof Glass: Safe and Stable
The advertising display uses tempered explosion-proof glass for screen protection, ensuring the safety and stability of the device's screen, allowing for worry-free use even in public places or densely populated areas.
4. Modular Design: Easy Installation
The advertising machine adopts a modular design, making installation simple and maintenance convenient. Users can replace parts as needed, easily resolving equipment malfunctions and reducing maintenance costs.
55-inch Outdoor Waterproof Vertical Advertising Machine Applications in Various Scenarios
1. Electronic Newspaper Kiosk: Information Updated in Real Time
As an outdoor advertising machine, it can be easily embedded in an electronic newspaper kiosk, providing citizens with the latest information and keeping them informed of current events, meeting the public's urgent need for information.
2. Shopping Mall Promotion: Eye-Catching
The bright yellow exterior makes the advertising machine a unique feature in shopping malls, providing businesses with an excellent opportunity to attract customer attention.
3. Promotional Venues: Significant Results
Whether on street corners or in public squares, this outdoor advertising machine can attract a large number of eyes, providing an efficient display platform for event promotions, government announcements, etc.
4. On-Site Events: Interactive Participation
Combined with touch screen technology, the advertising machine can provide participants with an interactive experience at the event site, enhancing the fun and appeal of the event.
This 55-inch outdoor waterproof vertical advertising display not only boasts a striking bright yellow exterior, but also shines in various advertising venues and fields thanks to its superior hardware specifications and wide range of applications. On the path of information delivery and promotion, it helps you lead the future, easily showcase your products, attract attention, and achieve excellence!
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet |
| Specications |
|
| The containment structure |
The material and feature of shell |
IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
|
| Glass feature |
with 6mm Tempered explosion-proof Glass above the screen panel |
|
| LCD Panel |
Screen Size |
55 inch |
| Display area |
1214mm(H) X 684mm(V) |
| Aspect Ratio |
9:16 |
| LCD Type |
TFT-LCD |
| Max Resolution |
1920X 1080 |
| Display color |
16.7M |
| Brightness |
2000cd/㎡~2500 cd/㎡ |
| Contrast Ratio |
4000:1 |
| Viewing angle(up/down/left/right) |
178°/178°/178°/178° |
| Response Time |
6ms |
| Field Frequency |
60Hz |
| Storage temperature & Humidity |
below20℃ ~ +60℃, ≤ 90%RH |
| Touch Overlay for Interactivity |
Touch style |
Projected Capacitive Touch screen |
| Touch points |
10 points |
| Ambient light sensor |
auto dimming, with light sensor, automatically adjust the brightness. |
| Drawer-type Android Media Player box Configuration |
Processor Chip |
RK3399, six core |
| RAM |
4GB |
| Flash Memory Card |
32GB |
| Wifi and 4G |
Yes |
| Version |
Android 9.0 |
| Media Format |
Video format |
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format |
MP3, WMA |
| Photo format |
BMP, JPEG, PNG, GIF etx |
| Onboard interface |
Network port |
RJ45, 10M/100M Adaptive Ethernet |
| HDMI |
1 |
| USB |
2 |
| Camera |
Built-in 5 Megapixel Camera with 1920X1080 Resolution |
| Speakers |
Dual side speakers for Audio |
| ECU |
Switch power supply |
Industrial Power supply |
| Waterproof speaker |
High quality waterproof 10W speaker |
| Thunder Preventer |
The tree-level lightning protection |
| Leakage protective device |
Defend Electricity Leakage |
| Timer |
Set up on/off time on day/week/month |
| Outdoor OMC system(optional) |
inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). |
|
| Problem and staus monitoring software included. |
| Software-based fault diagnosis is included. |
| Use softwae Remote Check key working performance by Group |
| Unnormal work alarm generation |
| Built-in Air conditioner for Ventilation |
Intelligent Straight ventilation Cooling system |
Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
|
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically |
|
| Environment |
Working temperature |
0℃ ~ 50℃ |
| Working humidity |
5% ~ 95% |
| Working Voltage |
AC 100 ~240v , 50Hz |
| Max Power Consumption |
280W |
| Product size / Net weight |
To be determined |
| Outer Package size and Gross weight |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
