10.1 inch HD input industrial monitor high brightness wall mount capacitive touch monitor lcd display for industrial
Industrial Touch Screens: The Core Control Terminal for Modern Intelligent Automation
In today's rapidly advancing landscape of industrial intelligence and automation, the Industrial Touch Screens has become an indispensable core control terminal across numerous sectors including manufacturing, energy, healthcare, and transportation. It integrates display, computing, and control into a single unit, winning market preference through its stability, expandability, and durability. As a solution tailored for complex industrial environments, the professional industrial all-in-one's advantages are reflected in multiple aspects.
Industrial-Grade Hardware Architecture for Stable and Reliable Operation
The Industrial Touch Screens adopts a high-specification industrial motherboard and embedded architecture design. Internal configurations often feature low-power, high-efficiency platforms like Intel J-series, Core i5/i7, or ARM, capable of long-term, fault-free operation.
Paired with SSD storage and industrial-grade memory, it ensures high-speed data processing while enhancing overall shock resistance and data security, making it suitable for high-intensity scenarios requiring 24/7 uninterrupted operation.
Robust Structural Design for Diverse Environments
The chassis is constructed from cold-rolled steel or aluminum alloy, making it sturdy, pressure-resistant, and offering excellent anti-interference, dustproof, waterproof, and anti-corrosion properties.
The front panel typically boasts an IP65 protection rating, guarding against liquid splashes and fine dust ingress, suitable for deployment in complex environments like workshops, outdoors, and oil & gas or mining sites. Support for wide-temperature operation (e.g., -20°C to 60°C) and wide-voltage input (e.g., DC 9-36V) significantly enhances device adaptability.
Rich I/O Interfaces for Comprehensive Expansion
Equipped with abundant I/O interfaces, commonly including USB, COM, LAN, HDMI, VGA, GPIO, and audio, facilitating the connection of various peripherals and control devices.
Based on industry-specific customization needs, additional functional modules such as IC/ID card readers, barcode scanners, cameras, fingerprint recognition, 4G modules, Bluetooth, and Wi-Fi can be added, enabling comprehensive application expansion.
| LCD Panel Parameters |
Screen Size |
10.1 Inch |
| Display Area |
217 mm.(Height) X 135.6(Width)mm. |
| Aspect Ratio |
16 : 9 |
16 : 10 |
| LCD Type |
a-Si TFT-LCD Monitor |
a-Si TFT-LCD Monitor |
| Maximum Resolution |
1280 X 800 |
1920 X 1200 |
| Display Color |
16.7M, 50% NTSC |
16.2M , 50% NTSC |
| Brightness |
400cd/m² |
1000cd/m² |
| Contrast Ratio |
900 : 1 |
1000 :1 |
| Viewing Angle (Up/Down/Left/Right) |
85°/85°/85°/85° (Type)(CR≥10) |
80°/80°/80°/80° (Type)(CR≥10) |
| Response Time |
30ms |
30ms |
| LCD Panel Lifespan (Hours) |
60,000(Hour.) |
| Field Frequency |
60Hertz |
| Audio parameters |
Audio system |
Stereo |
| Speaker size |
≈ 99 x 45 x 20 mm |
| Impedance |
8 Ohm |
| Power |
2 x 5 Watt |
| Loudness |
> 80 Decibel |
| Interface |
4-pin connector |
Internal computer configuration
(Choose one of two) |
CPU |
i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz |
I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz |
| Graphics Card |
Integrated Graphics Card Intel® HD 4600 |
Integrated Graphics Card Intel® HD 530 |
| RAM |
4GB |
8GB |
| Storage Memory Capacity |
128GB |
256GB |
| OS |
Win10 or win11 Optional |
Win10 or win11 Optional |
| Wi-Fi Built-in |
Speed 150Mbps 802.11n wifi Integrated |
Speed 150Mbps 802.11n wifi Integrated |
| Media Format |
Video Format |
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio Format |
MP3, WMA |
| Photo Format |
BMP, JPEG, PNG, GIF etc. |
| Onboard Interface |
Network port |
RJ45 X 1, 10M/100M Adjustable Ethernet |
| HDMI |
1 |
| USB |
4 |
| Power |
Power Supply |
Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss |
≤ 15 Watt |
| Standby Mode Power Loss |
< 1 Watt |
| Features |
Operating Temperature |
0℃ ~ 50℃ |
| Storage Temperature |
Below 10℃ ~ +60℃ |
|
Stereo Speaker Length |
1.5m |

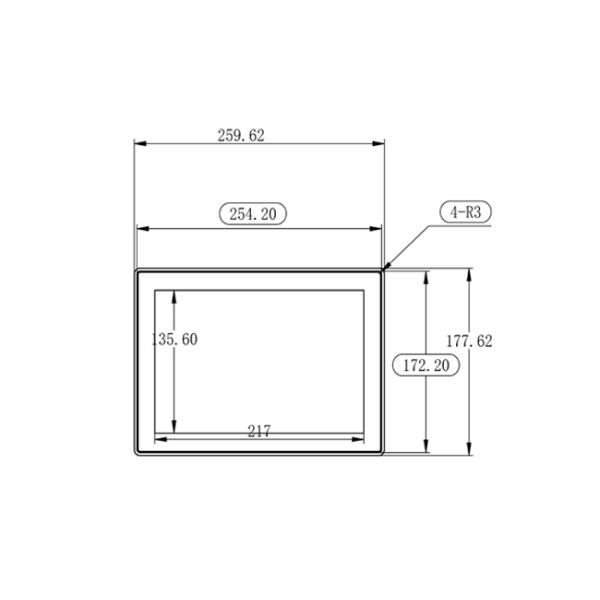

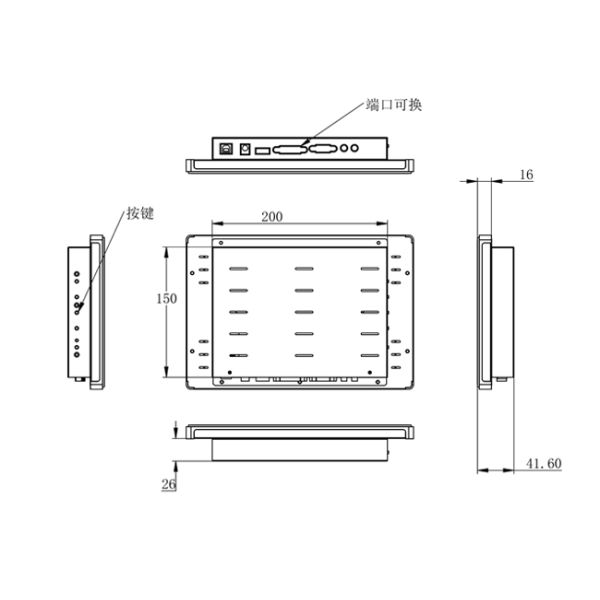

| Package Size |
Device Dimensions |
259.62 X 177.62 X 41.6 mm. |
| Net Weight |
2 Kilogram |
| Package Size |
31 X 23.3 X 11Centimeter |
| Gross Package Weight per Unit |
4 Kilogram |
if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
