Supply Ability : 500 pcs per month
Storage temperature : -25℃ to 80℃
Brand Name : ZXTLCD
Screen Size : 8 inch
Model Number : ZXTLCD-ST8A5
Resolution : 1920*1200
MOQ : 1
Delivery Time : 7 working days
Size : 225.6*134.6*13.3mm
Operate temperature : -20℃ to 55℃
Payment Terms : T/T,
RAM : 4GB+64GB/8GB+256GB optional
Price : negotiable
Touch Screen : 10 Point Touch
Certification : CE/Rohs/FCC
System : Android 11
Place of Origin : Guangdong, China
WIFI : 802.11a/b/c/g/n/ac Wireless AP ( Mobile AP )2.4G, 5G
Packaging Details : wooden case, carton, flight cases are optional
Waterproof : IP65

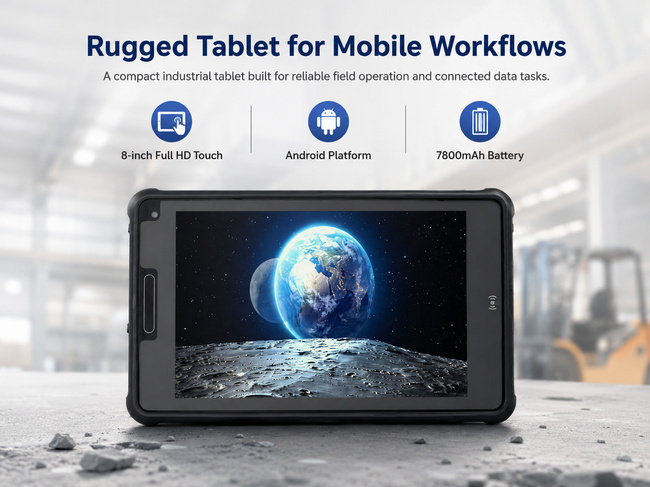

When a field team replaces paper notes with a connected device, the useful question is not simply whether a tablet is rugged. Buyers need to know how the screen, computing platform, communications and protection rating fit the exact sequence of work. This 8 inch Android rugged tablet is positioned for inventory checks, stock records and mobile data entry. Its published configuration combines Android 11 with MTK MT8788, while the listed memory and storage choice is 4GB+64GB; optional 8GB+256GB. That combination gives buyers a factual starting point for application testing rather than a generic performance claim.
The physical format is 225.6 × 134.6 × 13.3 mm. The display specification is 8 inch, 1920×1200, 10-point touch. This matters when operators need to review forms, equipment values, images or task instructions without returning to a desk. Touch targets should still be tested with the actual software, screen scaling and any gloves used on site; a touch-point specification alone does not guarantee that an office interface will be convenient in the field.
| Project | Describe |
| OS | Android 11 |
| CPU | MTK MT8788 |
| RAM/ROM | 4GB+64GB/8GB+256GB optional |
| Display screen | 8 inch,1920*1200 |
| Touch Screen | 10 point touch |
| WWAN | 4G full network connectivity |
| WIFI | 802.11a/b/c/g/n/ac Wireless AP ( Mobile AP )2.4G, 5G |
| Speaker | 8Ω 1.5 Watt |
| Size | 225.6*134.6*13.3mm |
| Camera | Front: 5MP; Rear: 13MP |
| NFC | 13.56 MHz, Distance: 1-3cm |
| 1D/2D Barcode | optional |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
| GPS | BDS, GPS, GLONASS |
| Proof Degree | IP65 |
| Drop Test | Dropping Resistance 1.2 meters |
| Storage temperature | -25℃ to 80℃ |
| Operate temperature | -20℃ to 55℃ |
Display and computing choices should be matched to the files and applications used during a normal shift. For this 8 inch Android rugged tablet, the confirmed operating platform is Android 11, supported by MTK MT8788. The available memory and storage statement—4GB+64GB; optional 8GB+256GB—should be selected according to application size, local photo or video retention, offline map requirements and the number of records kept before synchronization. Buyers should provide a sample application package and representative files during evaluation.
The 8 inch, 1920×1200, 10-point touch screen creates the main operator workspace. A pilot can check text size, sunlight or indoor lighting conditions, touch accuracy and the number of fields visible without excessive scrolling. Where the page does not publish brightness, glove mode or active-pen support, those capabilities should be confirmed separately instead of assumed from the rugged product category.

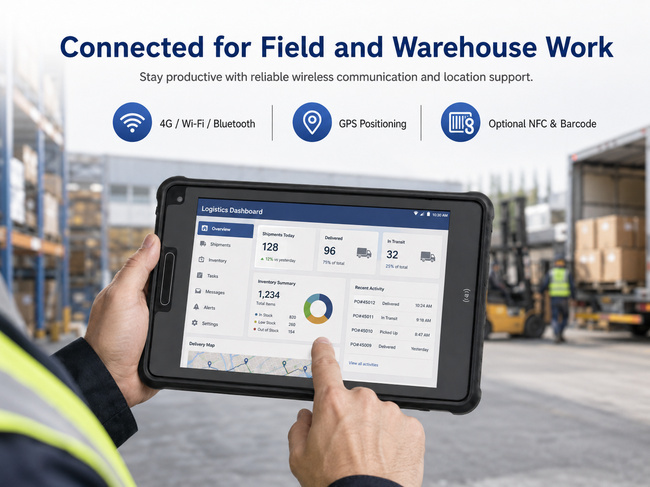

The value of the hardware appears when data can be captured once, checked on screen and transferred without avoidable re-entry. Published communications for this model include 4G, dual-band Wi-Fi, GPS/BDS/GLONASS. Network selection should follow the deployment country, carrier bands, access-point policy and whether the workflow must continue offline. GPS or related positioning can support route, inspection or asset records, but application accuracy and antenna behavior should be tested in the intended vehicle, building or outdoor setting.

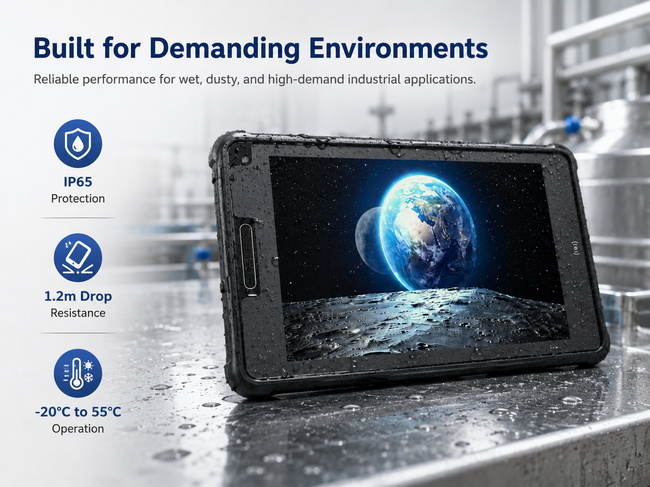

The listed protection information is IP65; 1.2 m drop. This is useful for screening a device for demanding work, but it is not a substitute for a site risk assessment. Ports, covers, charging accessories and mounting arrangements must be used as specified to preserve enclosure protection. Temperature limits, cleaning methods and drop exposure should also be reviewed against the actual workplace.

A sample should be tested with the intended application, wireless environment, accessories and user roles. The page lists optional 1D/2D barcode. Optional functions should appear individually on the quotation and approved sample because barcode engines, RFID modules, positioning options, docks and fingerprint readers can change software integration, power demand and mechanical handling. If an interface or battery value is not published, the buyer should request written confirmation before building it into a tender or installation drawing.
A practical acceptance test for this 8 inch Android rugged tablet can cover cold start, application login, a complete sample job, wireless handoff, record synchronization, charging and recovery from an interrupted task. Fleet planning should also define device naming, user permissions, OS update control, spare units and accessory replacement. These steps turn a list of specifications into a repeatable deployment for inventory checks, stock records and mobile data entry.
### Confirm the project baseline
For an accurate proposal, send the intended application, destination country, quantity, working hours, required wireless bands, data-capture options, mounting or docking needs and environmental conditions. ZXTLCD can then confirm the configuration of the 8 inch Android rugged tablet against the project before sampling or volume production.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
|
|
